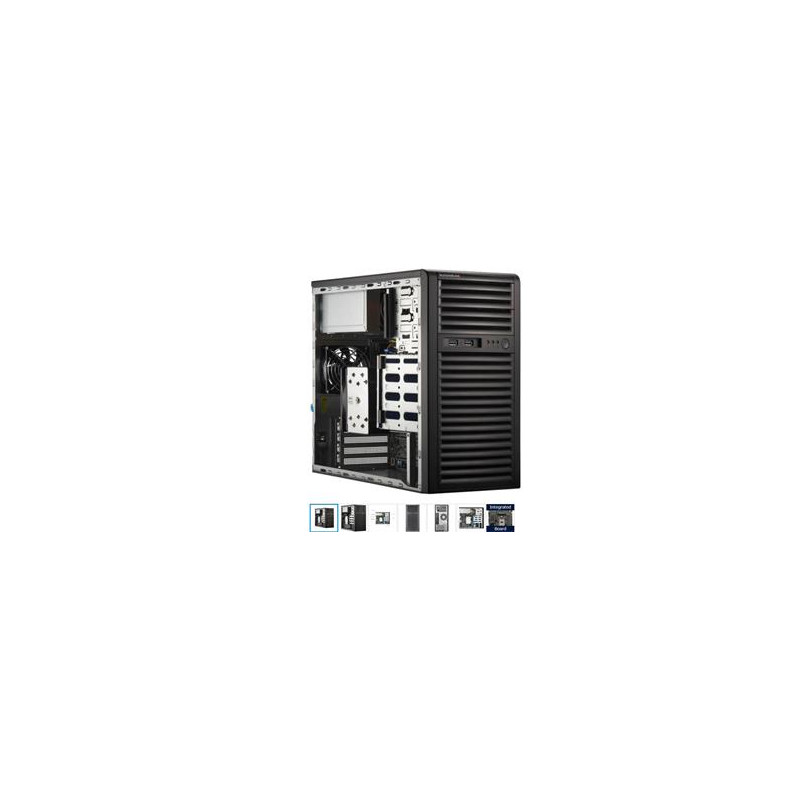

SUPERMICRO TW server AS-3015A-I, EPYC Raphael 4244P CPU, 2x 16GB DDR5-5600, 2x SSD M.2 NVMe PCIe4 96

Není skladem
78 839 Kč bez DPH 65 156 Kč

Poptat zboží
Hlídat cenu
Přidat k porovnání
Přidat k oblíbeným
SUPERMICRO
2529036
ASSRAS3015A-I-OTO-25
36 měsíců
  • Poradna a návody
  • Vhodné pro
Popis produktu
Product SKUs
A+ Server AS -3015A-I
Motherboard
Super H13SAE-MF
Processor
CPU
  • Single processor(s)
  • AMD EPYC™ 4004 / 4005 or AMD Ryzen™ 7000 / 9000 Series Processors
Core Count
  • Up to 16C/32T
Note
  • Supports up to 170W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 double-width GPU
Supported GPU
  • NVIDIA PCIe: RTX 2000 Ada, RTX 4000 Ada Generation, RTX 4070, RTX 6000 Ada Generation, RTX A2000, RTX A4000
  • AMD PCIe: Radeon Pro W7500, Radeon Pro W7800
  • View GPU Options
System Memory
Memory
  • Slot Count: 4 DIMM slots
  • Max Memory (2DPC): Up to 192GB 5200MT/s ECC/non-ECC DDR5 UDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1 support
NVMe
  • NVMe; RAID 0/1 support(Native)
Chipset
  • AMD B650
Network Connectivity
  • 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI)
  • 2 RJ45 1GbE with Intel® I210-AT
  • View AOC Options
Input / Output
Video
  • 1 VGA port
  • 1 HDMI 2.0b port
  • 1 DisplayPort 1.4a port
Audio
  • Rear Audio
System BIOS
BIOS Type
  • AMI 32MB SPI Flash
Management
Software
Power configurations
  • ACPI 6.0 Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
PC Health Monitoring
Voltage
  • +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
Chassis
Form Factor
  • Mini-Tower
Model
  • CSE-731i-668B
Dimensions and Weight
Height
  • 14.25" (362 mm)
Width
  • 7.25" (184 mm)
Depth
  • 16.75" (425 mm)
Package
  • 20" (H) x 11" (W) x 21" (D)
Weight
  • Gross Weight: 22 lbs (9.98 kg)
  • Net Weight: 18 lbs (8.16 kg)
Available Color
  • Black
Front Panel
Buttons
  • Power On/Off button
LED
  • HDD activity LED
  • Network activity LEDs
  • Power LED
  • System Overheat LED
Port
  • USB 3.0 Port(s)
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 1 PCIe 5.0 x16 FHFL slot
  • Option A
    • 2 PCIe 5.0 x8 FHFL slots
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bays
    • 4 front fixed 3.5" SATA drive bays
  • Option A: Total 4 bays
    • 4 front fixed 2.5" SATA drive bays
  • View Drive Options
M.2
Peripheral Bays
  • 2 5.25" peripheral bays
System Cooling
Fans
  • Up to 1x 90mm Fan(s)
  • Up to 1x 80mm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
1x 668W Platinum Level (92%) power supply
Dimension (WxHxL) 150 x 86 x 185 mm
Input 100-240Vac
668W: 100-240Vac / 50-60Hz
+12V Max: 54A (100Vdc-240Vdc)
Max: 54A / Min: 0.2A (100Vac-240Vac)
5V SB Max: 2A / Min: 0A
Output Type 24pin ATX
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
