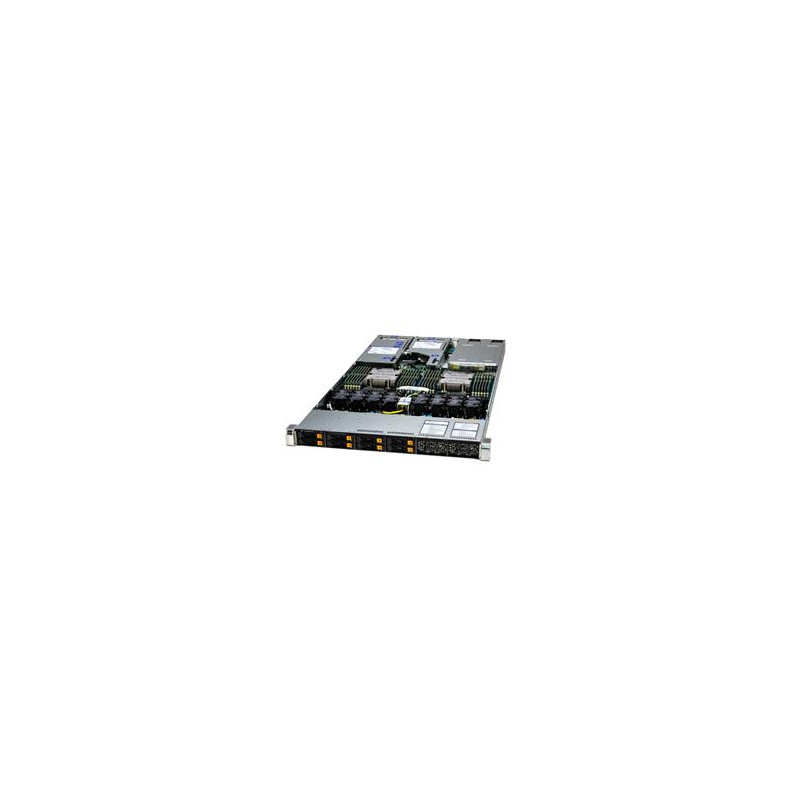

SUPERMICRO AS-1126HS-TN, 2x Genoa 9654 CPU, 24x 128GB DDR5-6400, 2x SSD 2.5" NVMe PCIe4 3.8TB, AOC-A100G-M2CM-O, AOM-TPM

Není skladem
2 908 711 Kč bez DPH 2 403 893 Kč

Poptat zboží
Hlídat cenu
Přidat k porovnání
Přidat k oblíbeným
SUPERMICRO
2537214
AS-1126HS-TN-OTO-95
36 měsíců
  • Poradna a návody
  • Vhodné pro
Popis produktu
Product SKUs
A+ Server AS -1126HS-TN
Motherboard
Super H14DSH
Processor
CPU
Core Count
  • Up to 384C/768T
Note
  • Supports up to 500W TDP CPUs *
  • *Air Cooled CPUs with TDP over 290W only supported under specific conditions. Contact a Supermicro representative for details.
System Memory
Memory
  • Slot Count: 24 DIMM slots
  • Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
  • Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
  • 1 USB 3.0 port(front)
Video
  • 1 VGA port
TPM
  • 1 TPM Onboard/port 80
System BIOS
BIOS Type
  • AMI 64MB SPI Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • UEFI 2.8
  • USB Keyboard support
  • ACPI 6.5
  • SMBIOS 3.7 or later
Management
Software
Power configurations
  • ACPI/APM Power Management
  • Power-on mode control for AC power loss recovery
  • Power button override mechanism,
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Voltage
  • System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-HS101-R000NFP
Dimensions and Weight
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 30.66" (778.7 mm)
Package
  • 8.82" (H) x 26.46" (W) x 43.31" (D)
Weight
  • Gross Weight: 41.4 lbs (18.8 kg)
  • Net Weight: 19.2 lbs (8.7 kg)
Available Color
  • Silver
Front Panel
Buttons
  • Power On/Off
  • UID button
LED
  • HDD activity
  • LAN1 activity
  • Power status
  • System information
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 1 PCIe 5.0 x16 FHHL slot
    • 2 PCIe 5.0 x16 FHFL slots
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • View AOC Options
CXL Support
  • Up to 4 CXL 2.0 x16 devices
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays
    • 8 front hot-swap 2.5" NVMe*/SATA* drive bays
  • Option A: Total 12 bays
    • 12 front hot-swap 2.5" NVMe*/SATA* drive bays
  • (*NVMe/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View NVMe Options
  • View Drive Options
M.2
System Cooling
Fans
  • Up to 8 counter-rotating 40x40x56mm Fan(s)
Air Shroud
  • 2 Air Shrouds
Power Supply


2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL) 73.5 x 40 x 265 mm
Input 1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
1600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB Max: 3.5A / Min: 0A
Max: 3.5A
Output Type Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Environmental / Recycling
Recycle
