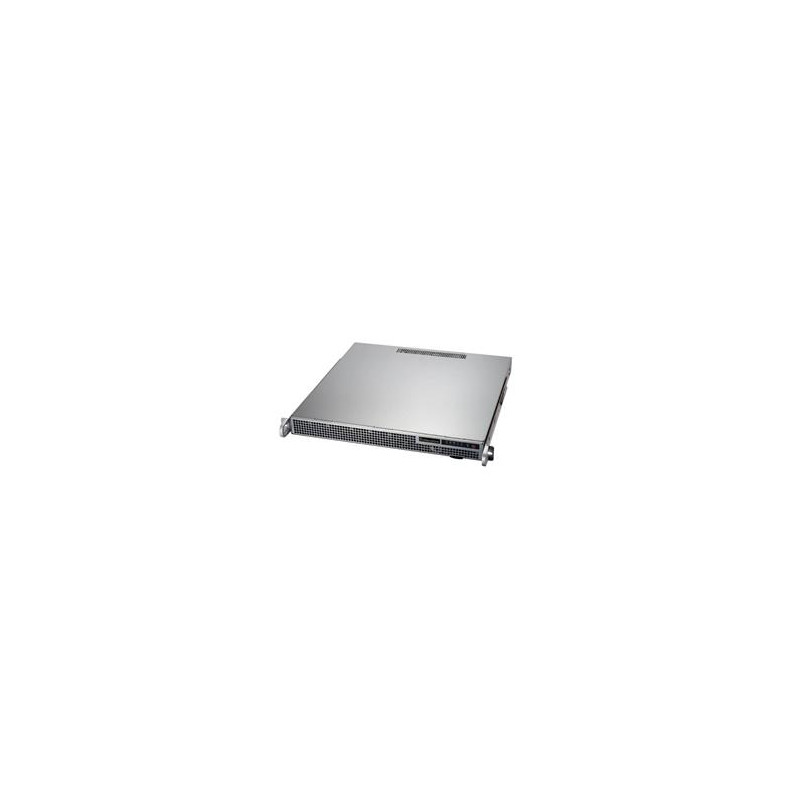

SUPERMICRO AS-1015A-MT, EPYC Raphael 4124P CPU, 16GB DDR5-5600, 2x SSD 2.5" SATA 480GB, Std LP 2-port GbE RJ45, Intel i3

Není skladem
55 293 Kč bez DPH 45 697 Kč

Poptat zboží
Hlídat cenu
Přidat k porovnání
Přidat k oblíbeným
SUPERMICRO
2536384
AS-1015A-MT-OTO-17
36 měsíců
  • Poradna a návody
  • Vhodné pro
Popis produktu
Product SKUs
A+ Server AS -1015A-MT
Motherboard
Super H13SAE-MF
Processor
CPU
  • Single processor(s)
  • AMD EPYC™ 4004 / 4005 or AMD Ryzen™ 7000 / 9000 Series Processors
Core Count
  • Up to 16C/32T
Note
  • Supports 60W - 170W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 single-width GPU
Supported GPU
  • NVIDIA PCIe: A2, L4, RTX 4000 Ada Generation, RTX A4000
  • AMD PCIe: Radeon Pro W7500
  • View GPU Options
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
System Memory
Memory
  • Slot Count: 4 DIMM slots
  • Max Memory (2DPC): Up to 192GB 5200MT/s ECC/non-ECC DDR5 UDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1 support
NVMe
  • NVMe; RAID 0/1 support(Native)
Chipset
  • AMD B650
Network Connectivity
  • 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI)
  • 2 RJ45 1GbE with Intel® I210-AT
  • View AOC Options
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 3 Type-A ports(Rear)
  • 2 Type-C ports(Rear)
  • 1 Type-C port(Rear)
Video
  • 1 VGA port
  • 1 DisplayPort 1.4 port
  • 1 HDMI 2 port
Audio
  • Rear Audio
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI 6.0 Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
PC Health Monitoring
FAN
  • Status monitor for speed control
Other Features
  • 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor
Temperature
  • CPU thermal trip support, Monitoring for CPU and chassis environment, PECI
Voltage
  • +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM
