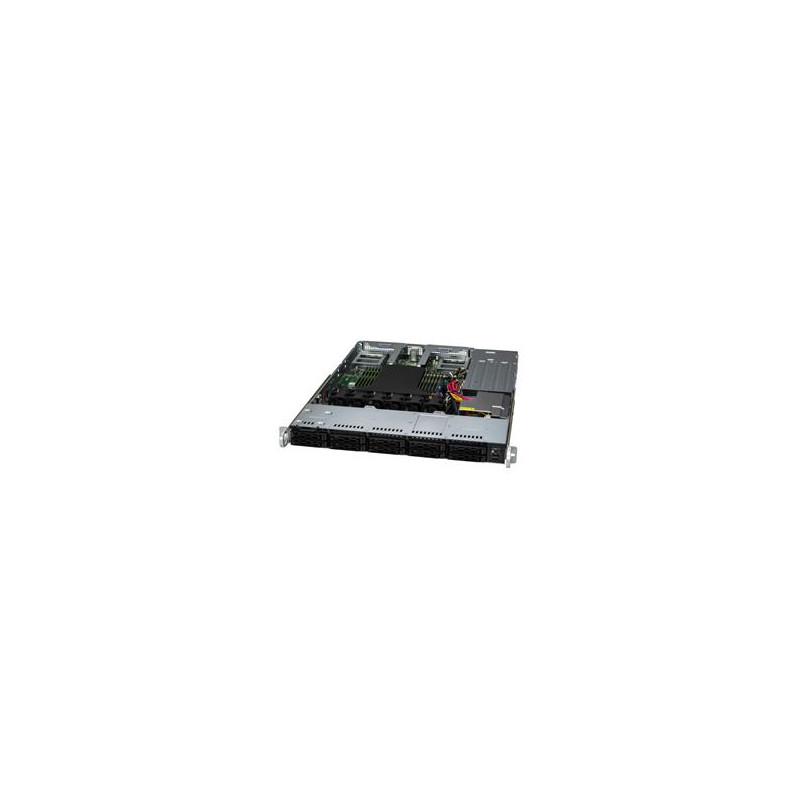

SUPERMICRO 1115CS-TNR 1U SP5(400W), noLAN, 10NVMe5(vč.CBL), 2M.2, 12DDR5, 2AIOM,2PCI-E16g5, IPMI, RoT, rPS 860W (80+TIT)

Není skladem

51 763 Kč bez DPH 42 779 Kč

Značka SUPERMICRO

Kód 2523345

P/N AS -1115CS-TNR-EU-10NVM 672042518821

Záruka 36 měsíců

Popis produktu

Product SKUs

A+ Server AS -1115CS-TNR Standard version with PWS-860P-1R2 (Platinum Level)

A+ Server AS -1115CS-TNR-EU European version with PWS-861A-1R (Titanium Level)

Motherboard

Processor
CPU	Single processor(s) AMD EPYC™ 9004/9005 Series Processors (* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
Core Count	Up to 160C/320T
Note	Supports up to 400W TDP CPUs * *Air Cooled CPUs with TDP over 360W only supported under specific conditions. Contact a Supermicro representative for details.

GPU
Max GPU Count	Up to 2 single-width GPUs
Supported GPU	NVIDIA PCIe: L4, A2 View GPU Options
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	PCIe

System Memory
Memory	Slot Count: 12 DIMM slots Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor, MB R1.x/R2.0/R2.01) Max Memory (1DPC): Up to 3TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.0) Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.01) View Memory Options
Memory Voltage	1.1V

On-Board Devices
Chipset	System on Chip
Network Connectivity	Via AIOM View AIOM Options View AOC Options

Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 ports(rear) 2 USB 2.0 ports(front)
Video	1 VGA port
Serial	1 COM port(rear)
TPM	1 TPM header

System BIOS
BIOS Type	AMI 32MB SPI Flash ROM
BIOS Features	ACPI 6.4 Plug and Play (PnP) SMBIOS 3.5 or later UEFI 2.8 USB Keyboard support

Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) OOB Management Package (SFT-OOB-LIC ) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI Power Management Power-on mode control for AC power loss recovery Power button override mechanism,

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

PC Health Monitoring
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Voltage	System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
