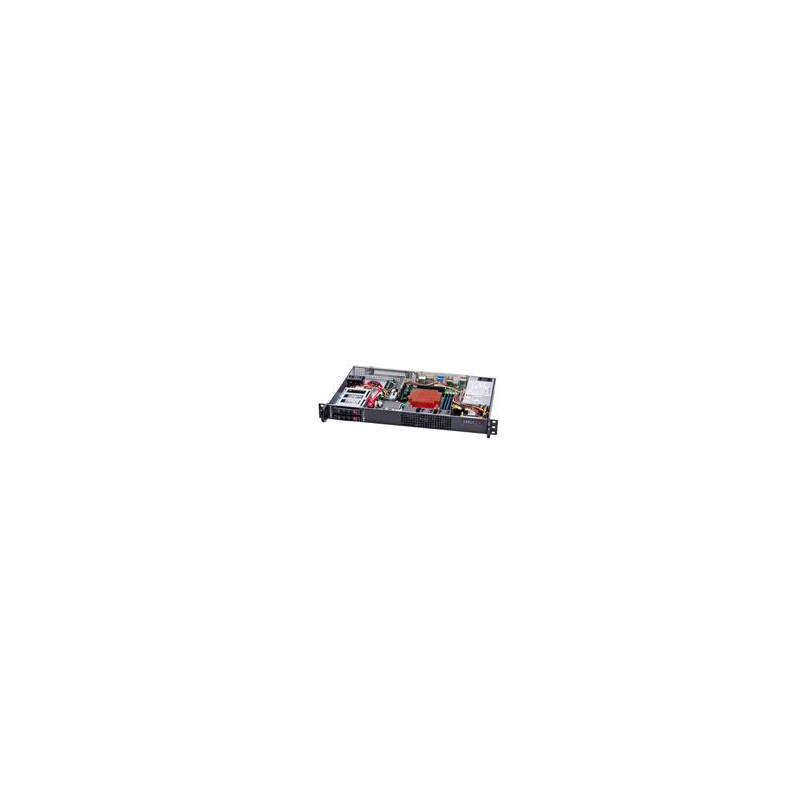

SUPERMICRO SYS-111AD-HN2, RPL-S i9-14900 CPU, 2x 16GB DDR5-4800, SSD 2.5"" SATA 960GB, SSD M.2 NVMe PCIe3 256GB, Windows

Není skladem
90 896 Kč bez DPH 75 121 Kč

Poptat zboží
Hlídat cenu
Přidat k porovnání
Přidat k oblíbeným
SUPERMICRO
2394800
SYS-111AD-HN2-OTO-29
60 měsíců
  • Poradna a návody
  • Vhodné pro
Popis produktu
Product SKUs
SuperServer SYS-111AD-HN2
Motherboard
Super X13SAZ-F
Processor
CPU
  • Single LGA-1700
  • 12th/13th Gen Core i9/i7/i5/i3 Processor
Note
  • Supports up to 80W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 4 DIMM slots
  • Max Memory (2DPC): Up to 128GB 4400MT/s ECC/non-ECC DDR5 UDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps)
Chipset
  • Intel® R680E
Network Connectivity
  • 2 RJ45 2.5GbE with Intel® I225-LM
  • View AOC Options
Input / Output
LAN
  • 2 RJ45 2.5 GbE LAN ports
USB
  • 4 ports
Video
  • 1 VGA port
  • 1 HDMI 2.0b port
  • 1 DVI-D port
  • 2 DisplayPort 1.4 ports
Audio
  • Line Out
  • Mic in
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • System Lockdown
PC Health Monitoring
Temperature
  • SuperDoctor® 5
  • System resource alert via SuperDoctor®5
  • Platform Environment Control Interface (PECI) 3.0 support
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-510FT-203B
Dimensions and Weight
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 11.3" (287 mm)
Package
  • 6.1" (H) x 25.4" (W) x 19.8" (D)
Weight
  • Gross Weight: 14.1 lbs (6.4 kg)
  • Net Weight: 10 lbs (4.54 kg)
Available Color
  • Black
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 1 PCIe 5.0 x16 HHHL slot
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 2 bays
    • 2 front hot-swap 2.5" SATA drive bays
M.2
System Cooling
Fans
  • 4x 4-PIN PWM 40x28mm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
1x 200W Gold Level (91%) power supply
Dimension (WxHxL) 76 x 40.3 x 192 mm
Input 200W: 100-240Vac
200W: 100-240Vac / 50-60Hz
+12V Max: 16A / Min: 0.1A (100Vac-240Vac)
Max: 16A / Min: 0A (100Vac-240Vac)
5V SB Max: 2A / Min: 0A
Output Type 20pin ATX
Certification   Gold Level

[ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
