FLXTSW332C4
Kód modelu: PDU FLXG2 SW 0U 309 3P 32A 30xC13,6xC19

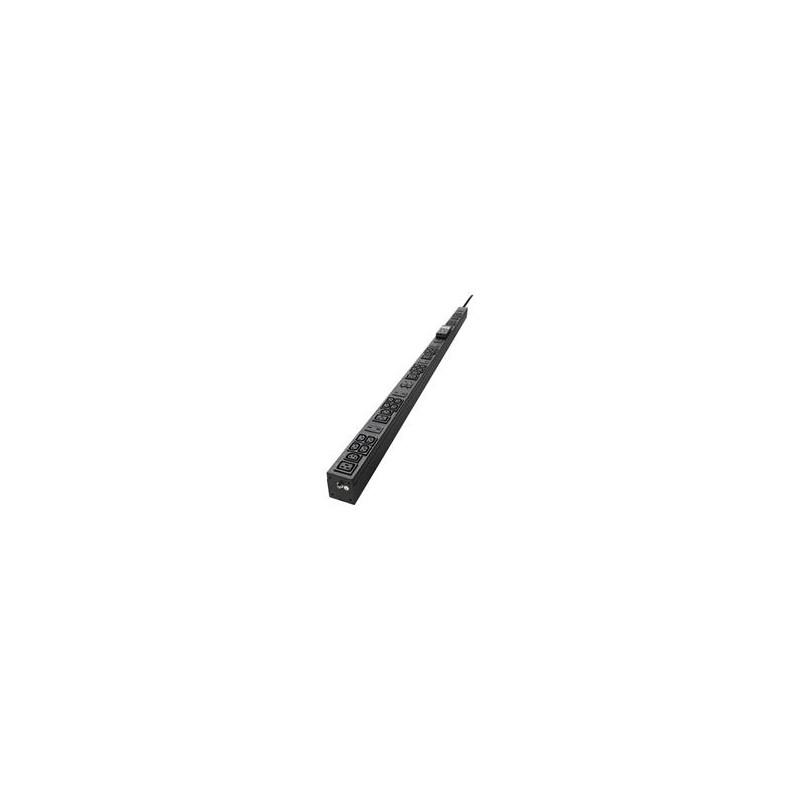

Eaton Switched FlexPDU Gen2, 0U, 42U, IEC60309 input, 3m cord, 3ph, 22kW, 32A, 415/240V, 36 outlets (30)C13, (6)C19
General specifications
Product Name
Eaton Flex PDU G2
Catalog Number
FLXTSW332C4
EAN
3553340697456
Product Length/Depth
75 mm
Product Height
1760 mm
Product Width
65 mm
Product Weight
9.5 kg
Compliances
LVD Directive (CB)
EMC Directive
RoHS Directive
REACH
WEEE Directive
Packaging Directive
Certifications
EN IEC 63000
EN 55032
RCM
Ukr
CE
EAC
Cm
IEC 62368-1
Model Code
PDU FLXG2 SW 0U 309 3P 32A 30xC13,6xC19
Technické údaje produktu
Special features
Locking outlets
Pure copper used for main circuit conductors
Hydraulic-magnetic circuit breakers (models ? 32A) provided
High-operating temperature resilience up to 50°C
Measurement accuracy ±1%
Ethernet port speed 10/100 Mbs
Supported protocols and standards: HTTPS, SSH, SNMP v1 v2c v3, SMTP, DHCP, NTP, TELNET, as well as IPv4 and IPv6
Full-featured network management through Web or SNMP
Hot-swappable network Management module
Remote on/off outlet switching
Grouped outlet control
Metered input measurement (current, power, energy consumption, power factor, etc.)
Type
Rack PDU
Form factor
0U (Vertical)
Outlet control
Yes
Package contents
Rack PDU
Mounting accessories
Quickstart guide
Safety Instructions
Operating Temperature
32° to 122°F (0° to 50°C)
Mounting direction
Vertical
Color
Black
Input connection
IEC-60309 32A RED (3P+N+E)
Cord length
3m
Wattage
22 kW max
Amperage Rating
32 A
Electric current - max
32 A
Input voltage
346-415V
Phase
Three-phase
Frequency rating
50-60 Hz
Outlets
36 outlets (30)C13, (6)C19
Number of Outputs 5-15R
0
Number of Outputs 5-20R
0
Number of Outputs 6-15R
0
Number of Outputs 6-20R
0
Number of Outputs L14-30R
0
Number of Outputs L5-20R
0
Number of Outputs L5-30R
0
Number of Outputs L6-20R
0
Number of Outputs L6-30R
0
Number of Outputs C13
30
Number of Outputs C19
6
Number of Outputs C20
0
Number of outputs hardwired
0
Num of Outputs PC (SCHUKO)
0
Number of outputs (other)
0
Number of outlets with earth pin
36
No of Outlet Suisse Stndrd Type13
0
No of Outlet Suisse Stndrd Type15
0
No of Outlet Suisse Stndrd Type23
0
No of Outlet Suisse Stndrd Type25
0
Number of UK BS1363 sockets
0
Circuit breaker
(6) single-pole
SNMP
Yes
Ethernet interface
Yes
Electrical connection
Connecting cord with plug
Evaluation
Other
Mounting Dimension (metrical)
1760
Mounting dimension (standardized)
Other
Switchable
Yes
Over voltage category
2
Fitted with:
Display
LED indication
Fuse
Mounting material
Communication
Yes
With surge protection module
No
Amperemeter
Yes
Number of USB connections
1
Number of RJ45 sockets
3s
