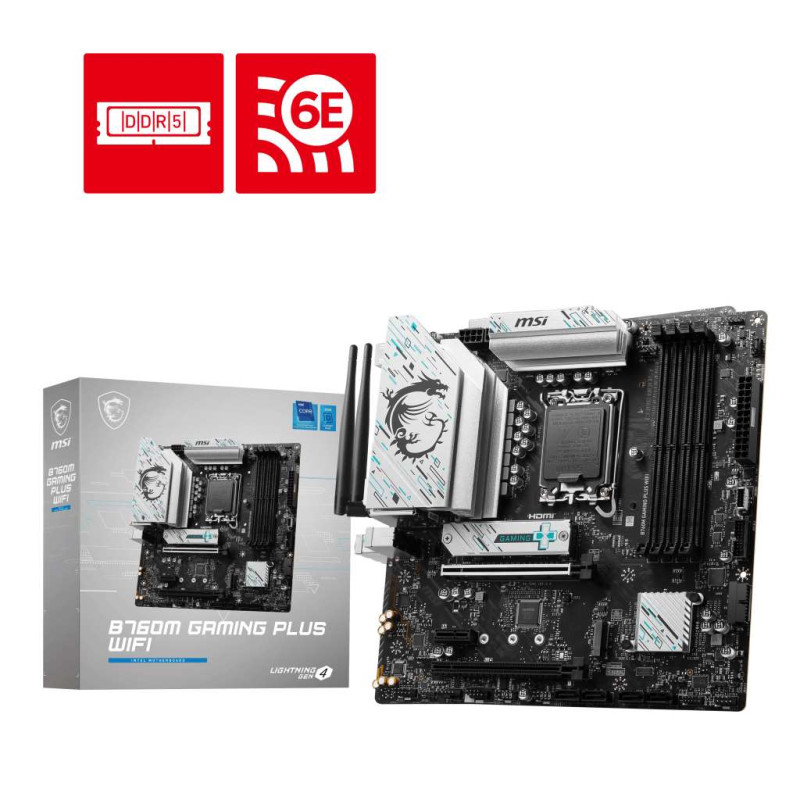

MSI MB Sc LGA1700 B760M GAMING PLUS WIFI, Intel B760, 4xDDR5, 2xDP, 2x HDMI, mATX

Formát základní desky:micro ATX Chipset:Intel B760 Socket (patice):Socket 1700 Pro procesory:Intel Technologie paměti RAM:DDR5 Počet paměťových slotů:4 M.2 slot:2 SATA 3:4 Podpora RAID:0, 1, 5, 10 PCI Express x16:2 PCI Express x1:1 PCI:0 LAN:2.5Gbit/s Bezdrátové připojení:WiFi + Bluetooth DisplayPort:2 HDMI:2 VGA:0...

Skladem > 5 ks

3 409 Kč bez DPH 2 817 Kč

Poptat zboží

Hlídat cenu

Přidat k porovnání

Přidat k oblíbeným

Značka MSI

Kód 2515994

P/N B760M GAMING PLUS WIFI 4711377154017

Záruka 36 měsíců

Poradna a návody
Vhodné pro
Parametry

Technické parametry

Typ paměti

DDR5

Paměť - max. velikost (GB)

256

Paměť - počet slotů celkem

Model

MSI B760M GAMING PLUS WIFI

Wi-Fi

Ano

Bluetooth

Ano

Konektor DVI

Konektor VGA (D-Sub)

Ethernet - rychlost

2,5 Gbs

Počet LAN portů

Konektor HDMI

Ano

Patice

LGA 1700

Výrobce chipsetu

Intel

Chipset

B760

Podpora generace CPU

12. 13. a 14. gen. Intel

Maximální frekvence pamětí

6800+

XMP

Ano

Podpora pro paměti typu ECC

Velikost základní desky

Mikro ATX

DisplayPort / miniDisplayPort

Ano

Počet pinů USB 2.0 (interní)

Počet USB 2.0 (externí)

Počet pinů USB 3.x (interní)

Počet USB 3.x (externí)

USB Typ C (interní)

Počet USB Typ C (externí)

ThunderBolt (interní)

COM port (interní)

Ano

COM port (externí)

LPT port (interní)

LPT port (externí)

Počet slotů PCIe x16

Počet slotů PCIe x1

Počet slotů PCI

Počet slotů M.2

Počet konektorů SATA 6Gb/s

Typ síťové karty

Realtek

RAID řadič

Ano

TPM Header

Ano

RGB LED Header

Ano

ARGB LED Header

Ano

M.2 v režimu PCIe 4.0 x4

Ano

PCIe 4.0 x16

Ano

Herní provedení

Ano

Popis produktu

MSI B760M GAMING PLUS WIFI

B760M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all.

Support Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G
2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use.Delivers a secure, stable and fast network connection
High Quality PCB: 6-layer PCB made by 2oz thickened copper
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

CHIPSET

INTEL B760

CPU

Support Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700

MEMORY

4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

ONBOARD GRAPHICS

2x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
2x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT

2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

STORAGE

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen1 Type C (Front)
2x USB 3.2 Gen2 Type A (Rear)

LAN + WIRELESS LAN

Realtek RTL8125BG 2.5G LAN

Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

AUDIO

Realtek ALC897 Codec
7.1-Channel High Definition Audio

INTERNAL I/O

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen1 Type C ports

BACK PANEL I/O

1x Keyboard / Mouse
2x DisplayPort
2x USB 3.2 Gen 1 5Gbps (Type-A)
1x 2.5G LAN
2x Wi-Fi / Bluetooth
2x USB 2.0
2x HDMI™
2x USB 3.2 Gen 2 10Gbps (Type-A)
3x Audio Connectors

OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit

FORM FACTOR

mATX
243.84 x 243.84mm
