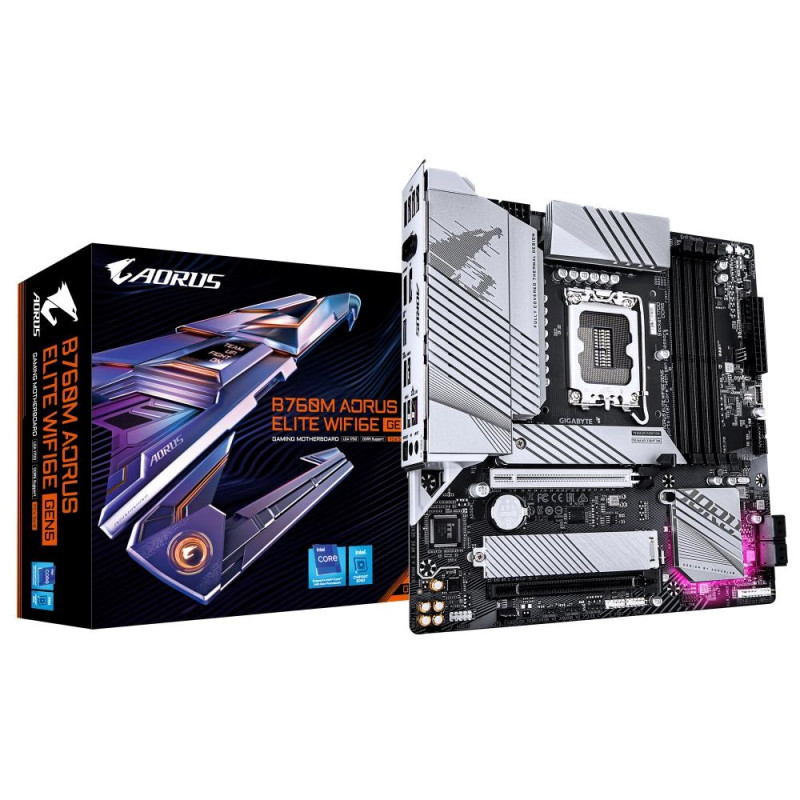

GIGABYTE MB Sc LGA1700 B760M AORUS ELITE WIFI6E GEN5, Intel B760, 4xDDR5, 1xDP, 1xHDMI, mATX

Formát základní desky:micro ATX Chipset:Intel B760, Intel Socket (patice):Socket 1700 Pro procesory:Intel Technologie paměti RAM:DDR5 Počet paměťových slotů:4 M.2 slot:2 SATA 3:4 Podpora RAID:0, 1, 5, 10 PCI Express x16:2 PCI Express x1:0 PCI:0 LAN:2.5Gbit/s Bezdrátové připojení:WiFi + Bluetooth DisplayPort:1 HDMI:1...
Skladem > 5 ks
3 699 Kč bez DPH 3 057 Kč

Poptat zboží
Hlídat cenu
Přidat k porovnání
Přidat k oblíbeným
GIGABYTE
2493385
B760M A E WF6E GEN5
36 měsíců
Technické parametry
Typ paměti
DDR5
Paměť - max. velikost (GB)
256
Paměť - počet slotů celkem
4
Model
GIGABYTE B760M AORUS ELITE WIFI6E GEN5
GIGABYTE B760M AORUS ELITE WIFI6E GEN5
eSATA
Ne
Wi-Fi
Ano
Bluetooth
Ano
Konektor DVI
Ne
Konektor VGA (D-Sub)
Ne
Ethernet - rychlost
2,5 Gbs
Počet LAN portů
1
Konektor HDMI
Ano
Patice
LGA 1700
Výrobce chipsetu
Intel
Chipset
B760
Podpora generace CPU
12. a 13. gen. Intel
Maximální frekvence pamětí
5600
XMP
Ano
Podpora pro paměti typu ECC
Ne
Velikost základní desky
Mikro ATX
DisplayPort / miniDisplayPort
Ano
Počet USB 2.0 (externí)
4
Počet USB 3.x (externí)
4
USB Typ C (interní)
1
Počet USB Typ C (externí)
1
ThunderBolt (interní)
Ne
COM port (interní)
Ne
COM port (externí)
Ne
LPT port (interní)
Ne
LPT port (externí)
Ne
Počet slotů PCIe x16
2
Počet slotů PCIe x1
0
Počet slotů PCI
0
Počet slotů M.2
2
Počet konektorů SATA 6Gb/s
4
Typ síťové karty
Realtek
RAID řadič
Ano
TPM Header
Ano
SPDIF OUT
Ano
RGB LED Header
Ano
ARGB LED Header
Ano
M.2 v režimu PCIe 3.0 x4
Ne
M.2 v režimu PCIe 4.0 x4
Ano
M.2 v režimu PCIe 5.0 x4
Ne
PCIe 4.0 x16
Ano
PCIe 5.0 x16
Ano
Herní provedení
Ano
Popis produktu

GIGABYTE B760M AORUS ELITE WIFI6E GEN5

  • PCIe Gen5 Performance : Perfect Sync to Win
  • Supports Intel Core™ 14th/ 13th /12th processors
  • Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
  • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
  • WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal
  • EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design
  • EZ-Latch Plus : M.2 Connectors with Quick Release & Screwless Design
  • PCIe UD Slot: SMD PCIe 5.0 Armor for enhanced graphics card support
  • Unparalleled Performance : Twin 12*+1+1 Phases Hybrid VRM Solution
  • Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support
  • Fast Networks : 2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity : Rear USB-C 20Gb/s, Front USB-C 10Gb/s, DP, HDMI
  • Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
  • Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
  • High-Res Audio : ALC1220 & High-End Audio Capacitors


CPU

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core™,Pentium Gold and Celeron Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU



Chipset

Intel B760 Express Chipset



Memory

14th and 13th Generation Intel Core™ i9/i7 Pocessors:
- Support for DDR5 5600/5200/4800/4400 MT/s memory modulesjk
13th Generation Intel Core™ i5/i3 and 12th Generation Intel Core™, Pentium Gold and Celeron Processors:
- Support for DDR5 4800/4400 MT/s memory modulesjk
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryjk
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)



Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.

- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)



Audio

Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out



LAN

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)



Wireless Communication module

Intel Wi-Fi 6E AX210
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)



Expansion Slots

CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)



Storage Interface

CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices



USB

Chipset:
- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
- 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 1 x USB 3.2 Gen 1 port on the back panel
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel



Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted PlatformModule header (For theGC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper



Back Panel I/O Connectors

2 x antenna connectors (2T2R)
1 x USB Type-C port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x HDMI port (Note)
1 x DisplayPort (Note)
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks

(Note) Actual support may vary by CPU.



I/O Controller

iTE I/O Controller Chip



H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.



BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0



Unique Features

Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Support for Q-Flash Plus



Bundled Software

Norton Internet Security (OEM version)
LAN bandwidth management software



Operating System

Support for Windows 11 64-bit
Support for Windows 10 64-bit



Form Factor

Micro ATX Form Factor
24.4cm x 24.4cm
