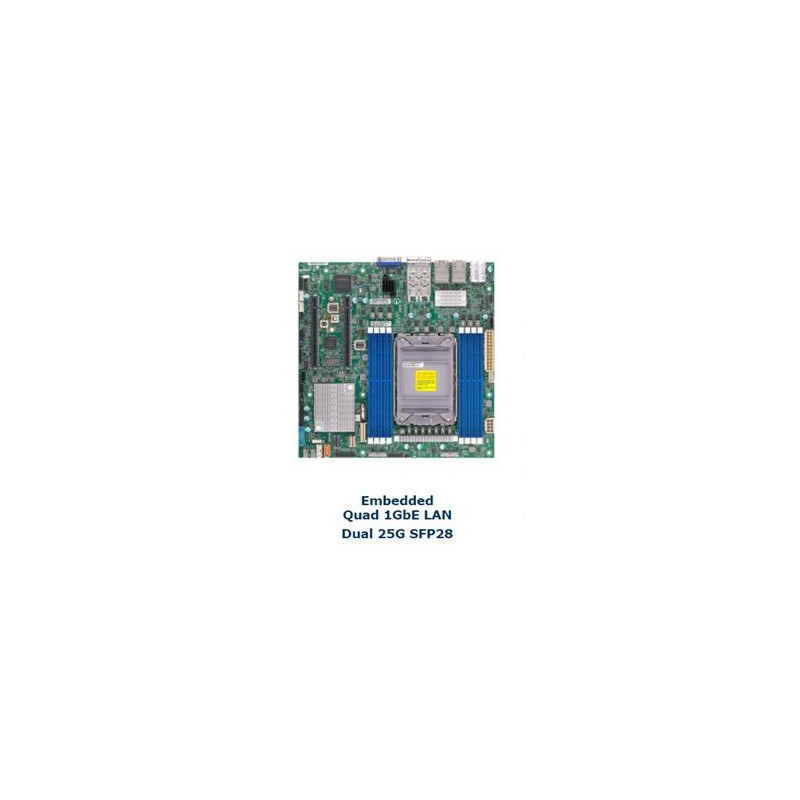

SUPERMICRO MB 1xLGA4189, iC621A, 8x DDR4 ECC, 3xNVMe, 1xNVMe 4xSATA3, M.2, 2x PCIe4.0 x16, 2x 25Gb + 4x 1Gb LAN,IPMI

Základní deska podporuje procesory Intel Xeon 3. generace s maximálním TDP 270W, 8 paměťových slotů pro DDR4 ECC RAM, 4x SATA3, 3x NVMe, 2x PCIe 4.0 x16 a pokročilou správu pomocí IPMI. Obsahuje také 2x 25Gb a 4x 1Gb LAN pro efektivní síťovou konektivitu.
Není skladem
19 397 Kč bez DPH 16 030 Kč

Poptat zboží
Hlídat cenu
Přidat k porovnání
Přidat k oblíbeným
SUPERMICRO
1226801
MBD-X12SPZ-SPLN6F-O
36 měsíců
  • Poradna a návody
  • Vhodné pro
Popis produktu
Key Features
  1.
  2. 3rd Gen Intel® Xeon® Scalable Processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
  3. Intel® C621A
  4. Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz Up to 2TB Intel® Optane? Persistent Memory 200 Series, in 8 DIMM slots
  5. 2 PCI-E 4.0 x16
  6. 1 PCI-E 4.0 NVMe x8 SlimSAS Internal Port
    1 PCI-E 4.0 NVMe x4 SlimSAS Internal Port
  7. 1 OCuLink Connector (4 SATA/PCI-E 3.0 x4)
    1 M.2 M-Key 2242/2280 (SATA/PCI-E 3.0 x4)
  8. Quad 1G RJ45 with Intel® I350-AM4
    Dual 25G SFP28 with Broadcom BCM57414
  9. 4 USB 3.2 Gen 1 (2 Rear, 2 via Header),
    4 USB 2.0 (Headers)
  10. Supports 12V DC power input
Specifications

Product SKUs

MBD-X12SPZ-SPLN6F
  • X12SPZ-SPLN6F

Physical Stats

Form Factor
  • Micro-ATX
Dimensions
  • 9.6" x 9.6" (24.38cm x 24.38cm)

Processor/Cache

CPU
  • 3rd Gen Intel® Xeon® Scalable processors
  • Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Cores / Cache
  • Up to 40 cores

System Memory

Memory Capacity
  • Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz
  • Up to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8 DIMM slots
Memory Type
  • 3200/2933/2666MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes
  • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset
  • Intel® C621A
SATA
  • Intel® C621A controller for 6 SATA3 (6 Gbps) ports;
  • 4 SATA ports via OCuLink; RAID 0,1,5,10
IPMI
  • ASPEED AST2600 BMC
Network Controllers
  • Quad LAN with 1GbE with Intel® I350-AM4
    Dual LAN with Broadcom BCM57414 25G SFP28

Input / Output

LAN
  • 4 RJ45 Gigabit Ethernet LAN ports
  • 2 SFP28 25 Gigabit Ethernet LAN ports
USB
  • 4 USB 2.0 ports (4 via headers)
  • 4 USB 3.2 Gen1 ports (2 rear + 2 via headers)
Video Output
  • 1 VGA port
Serial Port / Header
  • 1 COM Port (1 header)
TPM
  • TPM Header & Chip both
Expansion Slots

PCI-E
  • 2 PCI-E 4.0 x16
M.2
  • 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280

System BIOS

BIOS Type
  • 256Mb SPI Flash with AMI BIOS
BIOS Features
  • ACPI 6.2
  • UEFI 2.8
  • SMBIOS 2.8
  • SMBIOS 3.3 or later
  • Plug and Play (PnP)
  • PCI FW 3.0

Management

Software
  • Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
System Management Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
  • +12V DC Power Input
  • ACPI Power Management
  • ATX Power connector
  • M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL

PC Health Monitoring

Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 6 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, VBAT
Temperature
  • CPU thermal trip support
LED
  • Power LED, UID/Remote UID
Other Features
  • 12V DC or ATX Power Source, ACPI power management, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, Node Manager Support, RoHS

Operating Environment

Operating Temperature Range
  • 0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range
  • 10% ~ 95% (non-condensing)
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X12SPZ-SPLN6F 1 X12SPZ-SPLN6F Motherboard
SATA Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00154-0N 1 Standard I/O Shield for X12SPZ
CPU Retention Module SKT-1205L-P4IC-FXC 1 Socket P4 LGA4189 Carrier

Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X12SPZ-SPLN6F 1 X12SPZ-SPLN6F Motherboard
SATA Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00154-0N 1 Standard I/O Shield for X12SPZ
QRG MNL-2291-QRG 1 Motherboard Quick Reference Guide
CPU Retention Module SKT-1205L-P4IC-FXC 1 Socket P4 LGA4189 Carrier

Optional Parts List
Name Part Number Qty Description
1U I/O Shield MCP-260-00155-0N -- Standard 1U I/O Shield with EMI Gasket
TPM security module AOM-TPM-9670V -- SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
TPM security module AOM-TPM-9671V -- SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
x8 SlimSAS to 2x U.2 Cable CBL-SAST-0953-1 -- 55CM Slimline x8 to PCIe 2x SFF-8639
x4 SlimSAS to U.2 Cable CBL-SAST-1240A-85 -- 40CM Slimline x4 to PCIe SFF-8639
OCuLink to U.2 Cable CBL-SAST-0956 -- 55CM OCuLink to U.2 Cable with Molex Power Header
OCuLink to 4x SATA Cable CBL-SAST-0933 -- 50CM OCuLink to 4x SATA Cable

Chassis (Optimized for

X12SPZ-SPLN6F

)
Embedded Compact 1U 2U 3U Mid/Mini-Tower             4U/Tower
   SC515M-R804
 SC113MFAC2-605CB

 = Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
