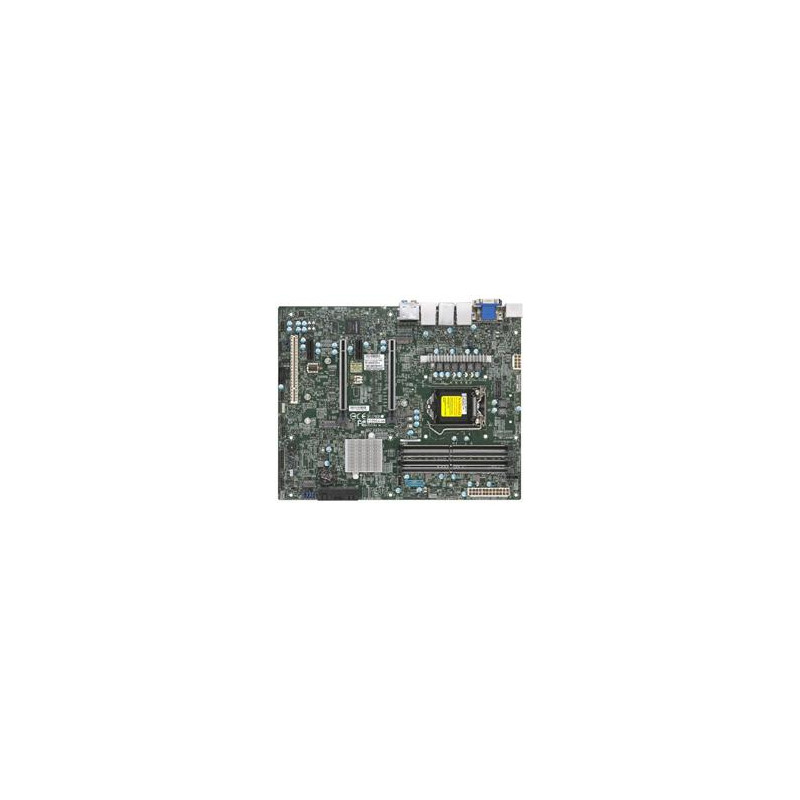

SUPERMICRO MB LGA1200 (Xeon W-13xx, core11), W580,4xDDR4,4xSATA,2xM.2,4xPCIe3.0 (16 8 1 1),HDMI,DP,DVI,Audio,2x LAN,IPMI

Deska podporuje procesory Intel 11. generace a Xeon W-1300. Nabízí až 128GB DDR4 RAM, 4 SATA a 2 M.2 pro úložiště. K dispozici jsou rozhraní HDMI, DP, DVI a dual LAN připojení s IPMI.
Není skladem
10 556 Kč bez DPH 8 724 Kč

Poptat zboží
Hlídat cenu
Přidat k porovnání
Přidat k oblíbeným
SUPERMICRO
1203915
MBD-X12SCA-5F-O
36 měsíců
  • Poradna a návody
  • Vhodné pro
Popis produktu

 Key features

  1. 11th Generation Intel® Core™ i5/i7/i9 Processors, Intel® Xeon® W-1300 Processors Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
  2. Intel® W580
  3. 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots
  4. 2 PCI-E 4.0 x16 slots (16/NA or 8/8)2 PCI-E 3.0 x1    1 - 5V PCI 32bit
    M.2 Interface: 1 PCI-E 4.0 x4 and 2 PCI-E 3.0 x4, RAID 0 & 1  M.2 Form Factor: 2280/22110 M.2 Key: M-Key     RAID 5 only applied for INTEL Storage Device
  5. 1 DP 1.4a port, 1 HDMI 2.0b port, 1 DVI - D port, 1 VGA port
  6. Intel® W580 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  7. Single LAN with Intel® Ethernet i225LM, Single LAN with Intel® PHY I219LM LAN controller for AMT/vPro, Single LAN with Dedicated LAN for IPMI
Specifications

Product SKUs

MBD-X12SCA-5F
  • X12SCA-5F

Physical Stats

Form Factor
  • ATX
Dimensions
  • 12" x 9.6" (30.48cm x 24.38cm)

Processor/Cache

CPU
  • 11th Generation Intel® Core™ i5/i7/i9 Processors, Intel® Xeon® W-1300 Processors
  • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
Cores / Cache
  • Up to 8 cores

System Memory

Memory Capacity
  • 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots
Memory Type
  • 128GB ECC/Non-ECC 3200MHz UDIMM
DIMM Sizes
  • 2GB, 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V

On-Board Devices

Chipset
  • Intel® W580
SATA
  • Intel® W580 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2500 BMC
Network Controllers
  • Single LAN with Intel® Ethernet i225LM
    Single LAN with Intel® PHY I219LM LAN controller
    for AMT/vPro
    Single LAN with
    Dedicated LAN for IPMI
Audio
  • ALC 888S HD Audio

Input / Output

LAN
  • 1 RJ45 2.5 Gigabit Ethernet LAN port
  • 1 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 2.0 ports (2 rear)
  • 2 USB 3.2 Gen1 ports (2 via headers)
  • 4 USB 3.2 Gen2 ports (4 Rear Type A
  • 2 USB 3.2 Gen2x2 ports (1 Type C)
Video Output
  • 1 DP 1.4a port, 1 HDMI 2.0b port, 1 DVI - D port, 1 VGA port
Serial Port / Header
  • 1 COM Port (1 header)
TPM
  • 1 TPM Header
Expansion Slots

PCI-E
  • 2 PCI-E 4.0 x16 slots (16/NA or 8/8)2 PCI-E 3.0 x1
  • 1 - 5V PCI 32bit
M.2
  • M.2 Interface: 1 PCI-E 4.0 x4 and 2 PCI-E 3.0 x4, RAID 0 & 1
  • Form Factor: 2280/22110
  • Key: M-Key
  • RAID 5 only applied for INTEL Storage Device

System BIOS

BIOS Type
  • 256Mb SPI Flash with AMI BIOS
BIOS Features
  • ACPI 6.0
  • Plug and Play (PnP)
  • BIOS rescue hot keys
  • Riser card auto-detection support
  • SMBIOS 3.0 or later

Management

Software
  • AMT, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SSM, SUM, SuperDoctor® 5, vPro, Watchdog
System Management Software
  • SuperDoctor 5
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
  • Power button override mechanism
  • Wake-on-LAN

PC Health Monitoring

Voltage
  • +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT
Temperature
  • N/A
LED
  • BMC/IPMI Heartbeat LED, Power LED, Catastrophic Error LED
Other Features
  • 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection

Operating Environment

Operating Temperature Range
  • 0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range
  • -20°C ~ 60°C (-4°F ~ 140°F)
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X12SCA-5F 1 X12SCA-5F Motherboard
SATA Cables CBL-0044L 2 SATA Cables
I/O Shield MCP-260-00151-0N 1 IO shield

Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X12SCA-5F 1 X12SCA-5F Motherboard
Quick Reference Guide MNL-2358-QRG 1 Quick Reference Guide
SATA Cables CBL-0044L 4 SATA Cables
I/O Shield MCP-260-00151-0N 1 IO shield

Optional Parts List
Name Part Number Qty Description
TPM security module (optional, not included) AOM-TPM-9670V-S 1 TPM for Intel Xeon CPU
TPM security module (optional, not included) AOM-TPM-9670V-C 1 TPM for Intel Core CPU
TPM security module (optional, not included) AOM-TPM-9671V-S 1 TPM for Intel Xeon CPU
TPM security module (optional, not included) AOM-TPM-9671V-C 1 TPM for Intel Core CPU
