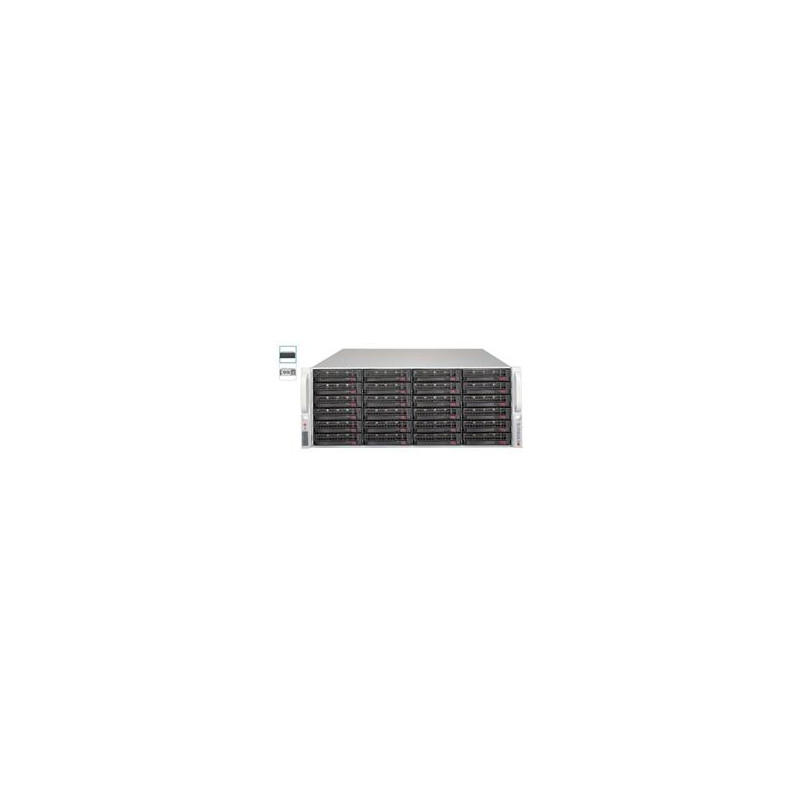

SUPERMICRO 4U server CSE-846BE1C-R1K03JBOD, 12x HDD, 3.5"",SAS, 16TB, 7.2K, 512E,Enterprise, 2x CBL-SAST-0573"

Product SKUs

CSE-846BE1C-R1K03JBOD SuperChassis 846BE1C-R1K03JBOD



Form Factor

4U JBOD storage chassis



Dimensions

Height 7" (178 mm)

Width 17.2" (437 mm)

Depth 26" (660 mm)

Net Weight 60 lbs (27.22 kg)

Gross Weight 80 lbs (36.29 kg)

Packaging (W x H x L) 27" (686 mm) x 14.8" (376 mm) x 37.3" (947 mm)

Available Color Black



Drive Bays

24 x 3.5" hot-swap HDD bays for JBOD solution



Qualified SAS Controllers

AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter
AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller



Backplane

24-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD



Front Panel

Buttons Power On/Off button
System Reset Button
Unit Identification (UID) button

LEDs 1 Network Activity LEDs







Systems Cooling

Fans 3 x 8cm hot-swap redundant PWM cooling fan(s)
2 x 8cm hot-swap exhaust fan(s) & air shroud



System Monitoring

IPMI



Operating Environment (System)

Operating Temperature Range 5°C - 35°C (41°F - 95°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)



Power Supply
1U 800/1000W Redundant Titanium Single Output Power Supply W/PMbus
Power Efficiency 96%

Total Output Power and Input 800W with Input 100 - 127Vac
1000W with Input 200 - 240Vac
1000W with Input 200 - 240Vdc

AC Input Frequency 50-60Hz

Dimensions (L x W x H) 336 x 76 x 40 mm

Output Type Backplanes (gold finger)

+12V Max: 66.7A (100Vac - 127Vac)
Max: 83A (200Vac - 240Vac)
Max: 83A (200 - 240)

+5Vsb Max: 4A / Min: 0A

Power Distributor PDB-PT846-2824
O/P: 12V/135
+5V Max: 50
+3.3V Max: 24
-12V Max: 0.6

Certification Titanium Certified Titanium Certified




Regulatory (Power Supply)

Power Supply Safety / EMC BSMI
CCC
CE/EMC
FCC class A
UL/CB
UL/CUL
