Mechanical

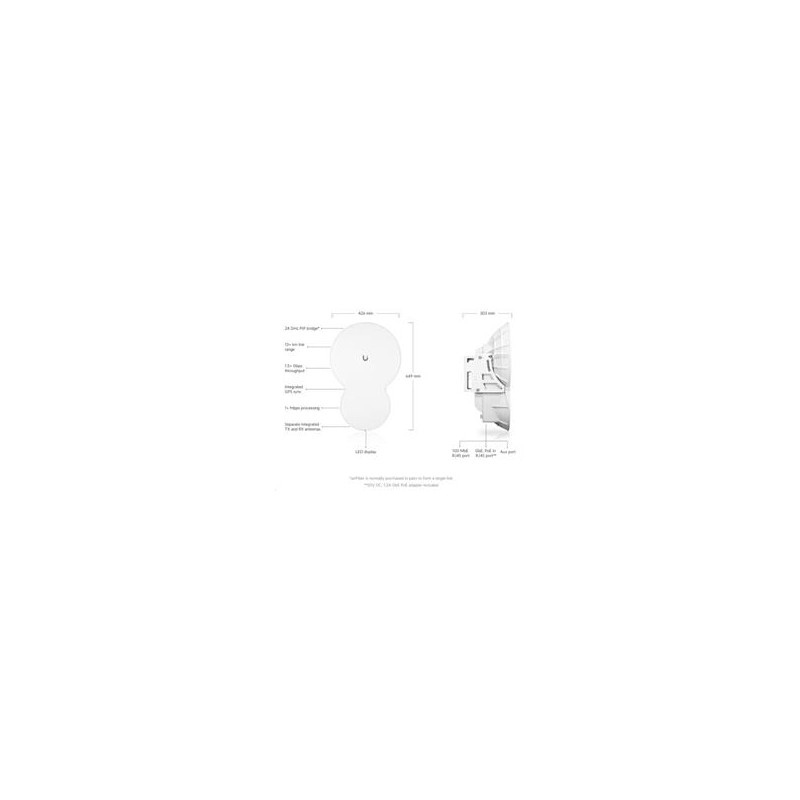

Dimensions 649 x 426 x 303 mm (25.6 x 16.8 x 11.9")
Weight 10.5 kg (23.2 lb)
Mounting Pole mount kit (Included)
Wind loading 480 N @ 200 km/h (108 lbf @ 125 mph)
Wind survivability 200 km/h (125 mph)
Hardware
Networking interface (1) GbE RJ45 port
(1) 10/100 MbE RJ45 port
Auxiliary port (1) RJ-12, alignment tone port
Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Power supply 50V, 1.2A gigabit PoE adapter (Included)
Supported voltage range 42–58V DC
Max. power consumption 50W
Operating frequency 24.05 – 24.25 GHz
Ambient operating temperature -40 to 55° C (-40 to 131° F)
Certifications CE, FCC, IC
System
Max. throughput 1.5+ Gbps
Ma. range 13+ km
Packets per second 1+ million
Encryption 128-bit AES
Uplink/Downlink ratio Programmable in Half Duplex mode
RF
GPS GPS clock synchronization
EIRP ~33 dBm (FCC/IC)
~20 dBm (CE)
~40 dBm (Other Regions)
Frequency accuracy ±2.5 ppm without GPS synchronization
±0.2 ppm with GPS synchronization
Channel bandwidth 100 MHz
Operating frequency 24.05 – 24.25 GHz
Operating channels 24.1 GHz, 24.2 GHz
Modulation 64QAM MIMO
16QAM MIMO
QPSK MIMO
QPSK SISO
1x QPSK SISO
Gain
TX
RX
33 dBi
38 dBi
Beamwidth < 3.5°
Front-to-back ratio 70 dB
Polarization Dual-slant
Cross-polarity Iiolation > 28 dB
LEDs
System (8) Status LEDs:
Data port speed
Data port link/activity
Configuration port speed
Configuration port link/activity
GPS synchronization
Modulation mode
Master/slave
RF status
(1) Two-digit LED display calibrated in dBm
