MSI MB Sc AM5 MPG X870I EDGE TI EVO WIFI, AMD B870, 2xDDR5, WiFi,1xHDMI, mini-ITX

Formát základní desky:ATX Chipset:AMD X870 Socket (patice):Socket AM5 (LGA 1718) Pro procesory:AMD Technologie paměti RAM:DDR5 Počet paměťových slotů:2 M.2 slot:3 SATA 3:2 Podpora RAID:0, 1 PCI Express x16:1 PCI:1 LAN:2.5Gbit/s Bezdrátové připojení:WiFi + Bluetooth DisplayPort:0 HDMI:1 VGA:0 DVI:0 DisplayPort...

Skladem > 5 ks

11 357 Kč bez DPH 9 386 Kč

Poptat zboží

Hlídat cenu

Přidat k porovnání

Přidat k oblíbeným

Značka MSI

Kód 2539078

P/N MPG X870I EDGE TI EVO WIFI 4711377401463

Záruka 36 měsíců

Poradna a návody
Vhodné pro
Parametry

Technické parametry

Typ paměti

DDR5

Paměť - max. velikost (GB)

128

Paměť - počet slotů celkem

Model

MSI MPG X870I EDGE TI EVO WIFI

Wi-Fi

Ano

Bluetooth

Ano

Konektor DVI

Konektor VGA (D-Sub)

Ethernet - rychlost

5 Gbs

Počet LAN portů

Konektor HDMI

Ano

Patice

AM5

Výrobce chipsetu

AMD

Chipset

X870

Podpora generace CPU

7. až 9. gen Ryzen

Maximální frekvence pamětí

10000

XMP

Ano

Podpora pro paměti typu ECC

Velikost základní desky

Mini ITX

Počet pinů USB 2.0 (interní)

Počet USB 2.0 (externí)

Počet pinů USB 3.x (interní)

Počet USB 3.x (externí)

USB Typ C (interní)

Počet USB Typ C (externí)

ThunderBolt (interní)

ThunderBolt (externí)

Ano

COM port (interní)

COM port (externí)

LPT port (interní)

LPT port (externí)

Počet slotů PCIe x16

Počet slotů PCIe x1

Počet slotů PCI

Počet konektorů SATA 6Gb/s

Typ síťové karty

Realtek

RAID řadič

Ano

SPDIF OUT

Ano

ARGB LED Header

Ano

M.2 v režimu PCIe 4.0 x4

Ano

M.2 v režimu PCIe 5.0 x4

Ano

PCIe 5.0 x16

Ano

Herní provedení

Ano

Popis produktu

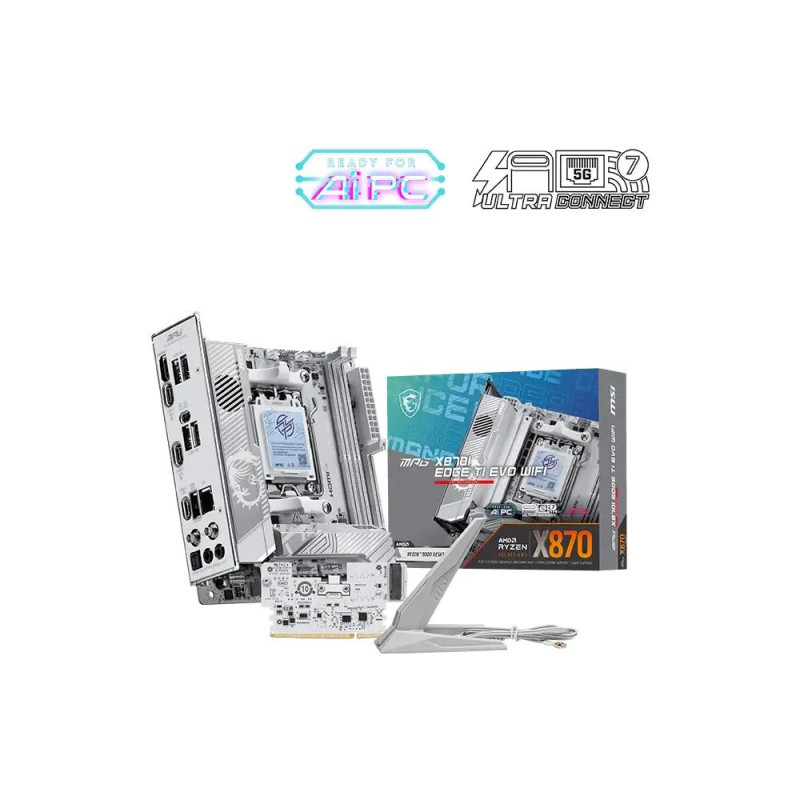

MSI MPG X870I EDGE TI EVO WIFI

MPG X870I EDGE TI EVO WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its true Wi-Fi 7 solution, 5G LAN, USB4, and the latest PCIe 5.0 compatibility, and this is the best white theme X870 ITX motherboard for AMD Ryzen™ 9000 series processors.

Chipset

AMD X870

CPU

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5

Memory

2x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 10000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 8000+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
* The DIMM slots on this motherboard only have single-sided latches.
** CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
*** Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

Graphics

1x HDMI™
Support HDMITM 2.1 with TMDS port, supporting a maximum resolution of 4K 60Hz*
2x Type-C DisplayPort
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Expansion Slots

1x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E1 slot (From CPU)
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
1x FP card slot
• Supports the installation of MSI 5-in-1 XPANDER card only.

Audio

Realtek ALC4080 Codec
7.1-Channel USB High-Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
Supports S/PDIF output

Storage

1x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices
2x SATA 6G
M.2_1 slot (From CPU)
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M.2_2 slot (From X870 chipset)
• Supports up to PCIe 4.0 x4
• Supports 2260/2280 storage devices
• Supports single sieded M.2 SSD only
5-in-1 XPANDER Card
M.2_3 slot (From X870 chipset)
• Supports up to PCIe 4.0 x4
• Supports 2260/2280 storage devices
• Supports single sided M.2 SSD only

RAID

• Supports RAID 0, and RAID 1 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 5* for M.2 NVMe storage devices
* RAID 5 configuration is only supported by Ryzen™ 9000 series processors.

USB

2x USB 2.0 (Front)
2x USB 5Gbps Type A (Front)
5x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
2x USB 40Gbps Type C (Rear)

LAN

1x Realtek 8126 5G LAN

Internal I/O Connectors

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
1x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Addressable V2 RGB LED connector (JARGB_V2)
2x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports

Wireless Communication module

Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth 5.4**, MLO, 4KQAM
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.

LED FEATURE

4x EZ Debug LED

Back Panel I/O Ports

USB 10Gbps Type-A
Clear CMOS Button
USB 10Gbps Type-A
5G LAN
Wi-Fi / Bluetooth
Audio Connectors
HDMI™
USB 40Gbps Type-C
Flash BIOS Button
USB 10Gbps Type-C
Optical S/PDIF Out

Operating System

Support for Windows 11 64-bit

BOX CONTENT

Form Factor

Mini-ITX
170mmx170mm
